asasii P1.

High-speed thermal receipt printer with incoming order alerts, built for the asasii counter.

The asasii P1 is a compact 80 mm thermal receipt printer that prints at 260 mm/s with auto-cut. Cubic design, LED status strip, anti-insect paper path, and automatic IP assignment over Ethernet. Ships preconfigured with asasii POS receipt templates, cash drawer kick signal enabled, and connectivity tested end-to-end.

260 mm/s80 mm thermalAuto-cutterDHCP ready

asasii receipt and kitchen templates preloaded
Cash drawer kick signal enabled and tested on-site
Incoming order alert with buzzer notification
Anti-insect paper path for F&B environments

Talk to the team

Compact cubic design

126.5 mm per side, built for tight counters.

The asasii P1 packs 260 mm/s thermal printing into a compact cubic chassis. LED status strip, top and front paper exit, and an anti-insect sealed paper path, designed for cashier counters and F&B kitchens where space and hygiene matter.

More efficient.

The asasii P1 delivers fast, reliable receipt printing in a compact cubic form factor. Designed for cashier, kitchen, retail, and takeout environments.

260 mm/s

High-speed printing

Thermal line printing at up to 260 mm/s keeps queues moving through peak hours without delays.

Incoming receipt reminder

Order alerts

Built-in buzzer and LED strip notify staff of incoming and uncollected orders, so no tickets get missed in busy kitchens.

USB / RS232 / Ethernet / BT

Multiple interfaces

Connect over USB, RS232, Ethernet, or Bluetooth with automatic IP assignment via DHCP for zero-touch network setup.

Sealed paper path

Anti-insect design

Purpose-built paper path prevents insects from entering the mechanism. Essential for F&B and kitchen environments.

126.5 × 120 × 128 mm

Compact form factor

Cubic design takes minimal counter space while supporting both top and front paper loading and exit directions.

Cross-platform

Wide compatibility

Works with Windows, Android, Linux, Mac, and iOS. ESC/POS command set for universal integration with any POS software.

Engineered for high-volume, low-maintenance operation.

150 km print head life

Thermal print head rated for 150 km of printing and 1.5 million auto-cutter cycles before replacement.

Overheat protection

Built-in thermal protection prevents damage during sustained high-volume printing shifts.

Paper-out alert

Automatic paper-out and cover-open alerts ensure staff catch issues before they affect service.

See the full build.

Compact cubic chassis, easy top-load paper path, LED status indicators, and multi-interface rear panel. Designed for daily retail use.

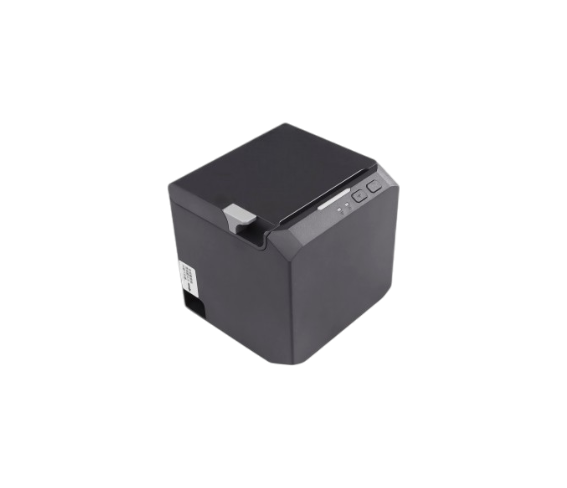

Side view

LED strip and button panel

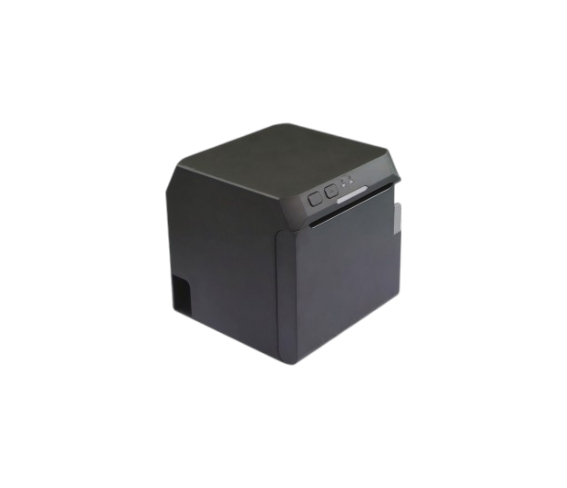

Rear view

Cable routing and label

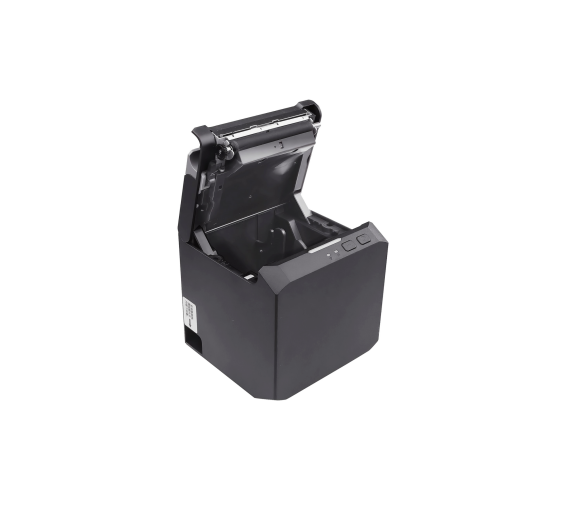

Paper loading

Top-load, easy paper swap

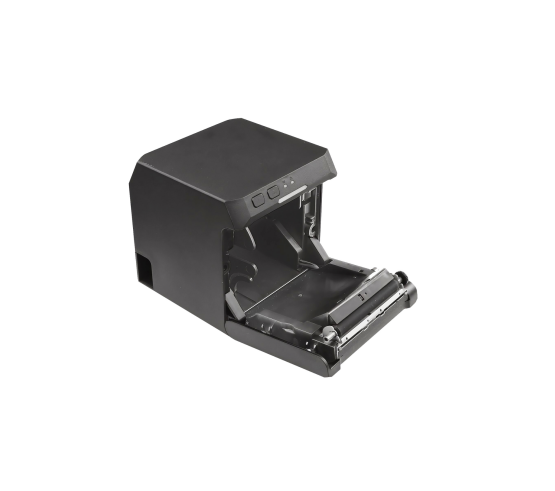

Open cover

Access to print head and cutter

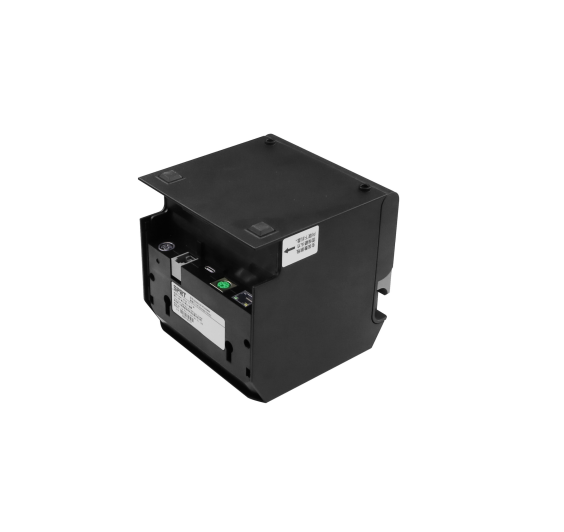

Interface panel

USB, RS232, Ethernet, cash drawer

The full datasheet.

Every unit ships configured, tested, and verified before handover.

Product model: asasii P1
Printing method: Thermal line
Resolution: 8 dots/mm (203 dpi), 576 dots/line
Print speed: 260 mm/s (max)
Effective print width: 72 mm / 48 mm
Paper width: 79.5 / 57.5 ± 0.5 mm
Paper roll diameter: 79.5 / 57.5 × ø83 mm (max)
Paper thickness: 0.06 mm – 0.08 mm
Paper loading: Top / front, easy paper loading
Paper output: Top / front paper output
Cutting method: Auto cut (partial cut)
Barcode — 1D: UPC-A, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128
Barcode — 2D: PDF417, QR Code, Data Matrix
Fonts: ASCII: 12×24, 24×24, 9×17 dots
Graphic printing: Bitmap printing with variable densities and downloadable graphics
Custom characters: Supported
Interface: USB / RS232 / Ethernet / Bluetooth / Cash drawer
Supported functions: Paper pick-up detection, incoming receipt reminder, anti-insect, buzzer, open/close cover alert, paper-out alert, overheat protection, DHCP
Power supply: DC 24 V ± 5%, 1.5 A
Command set: ESC/POS
OS compatibility: Windows / Android / Linux / Mac / iOS
Dimensions: 126.5 mm × 120 mm × 128 mm (L × W × H)
Weight: 800 g (without paper roll)
Operating temperature: 0 °C to 50 °C
Operating humidity: 10 % – 85 % RH
Storage temperature: −20 °C to 60 °C
Storage humidity: 10 % – 90 % RH
Print head / cutter life: 150 km / 1,500,000 cuts
Certifications: CE, CCC
